YOBIIQ PEM431 is a power quality meter used in the industrial environment that measures AC flowing through the devices connected to the electricity grid.

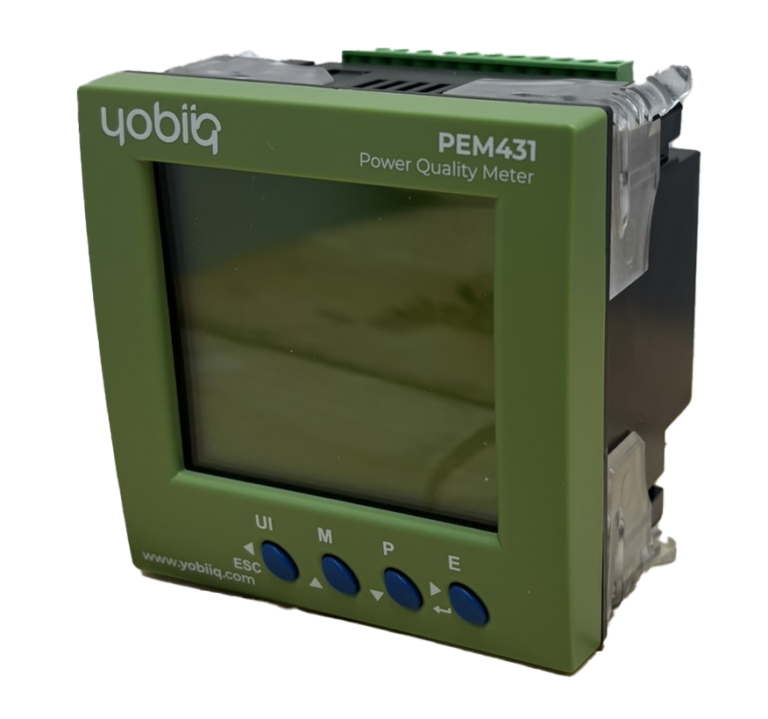

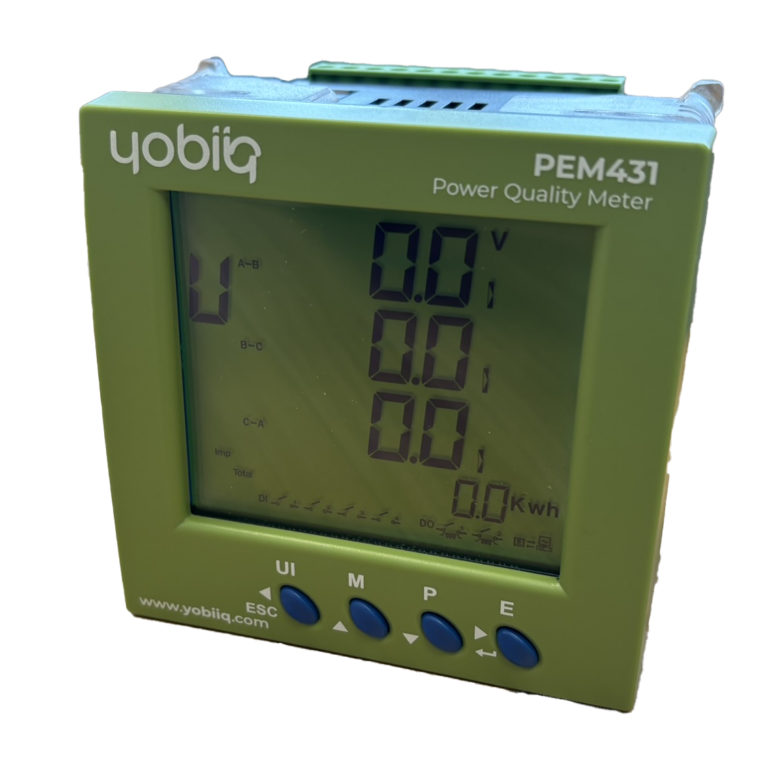

The device is equipped with a LCD screen and touch-buttons for operating and reading the consumption information and configuring parameters. Once connected, the meter will measure the following parameters: Current, Voltage, Frequency, Active Power, Power Factor, Active Energy and store the maximum demand values.

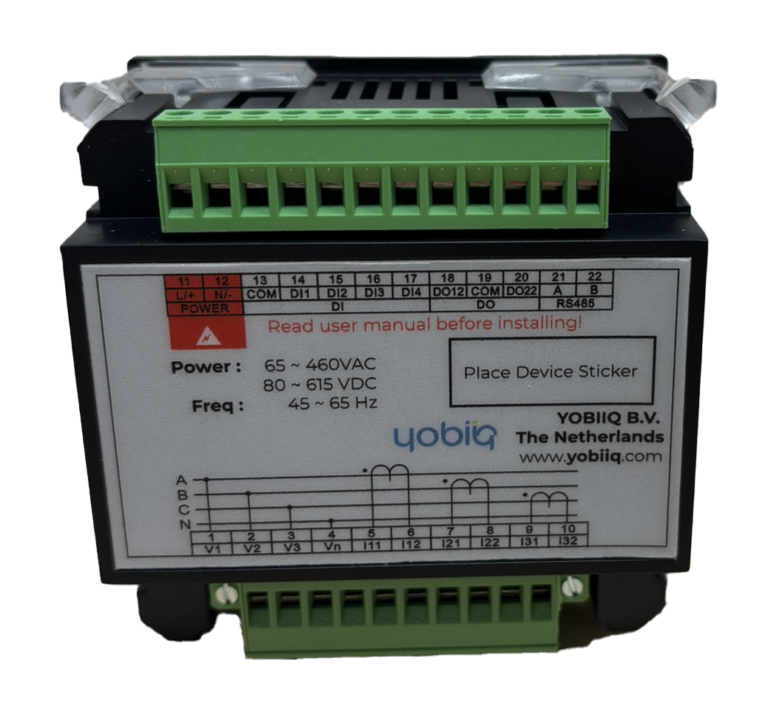

PEM431 is a LoRaWAN power quality meter used in the industrial environment. The device measures current flowing through the current transformers connected to the electricity grid.
The device is adapted for installation in power panels or automation cabinets with the standard built-in size of 96x96mm, making it easy to directly retrofit old analog models.
The measurement range of the current depends on your local requirements. The available options include current transformers with the following limits: 100A, 160 A, 200 A, 400 A, 600 A, 800 A, and 1000A.
The current clamps need to be ordered based on your requirements.
The internal datalogger of the PEM431 is designed to store measurements on interval times, counted from a full hour.
The internal time is synchronized at least every 24 hours to ensure maximum consistency of measurement data.
If you set the datalogger to store with intervals of 15 minutes, it will save the data on the exact interval time (xx:00 / xx:15 / xx:30 / xx:45) the timestamp of the datalogger entry is in each uplink packet along with the current internal device time.
The iQ PEM431 meter is adaptable, user-friendly, and enables effective energy management, cost savings, and the promotion of sustainable behaviors in a variety of settings, including residential, commercial, and industrial.
Improve your sustainability instantly by installing the YOBIIQ PEM431. By integrating it into the Kibi Cloud, you get immediate insights into the consumption of your installations.
See all your consumers in one dashboard, and see the energy intensisity of each of them. View your current and estimated carbon footprint.
Kibi Cloud can generate alarms when consumption thresholds are exceeded, or send monthly reports on the consumption in your facilities..
The Kibi Cloud integrates easily with your favorite management software thanks to our powerful APIs and dedicated connectors.
Power Supply: requires an auxiliary 230V power supply
Operating Temperature: -25 to +55°C; Relative Humidity <75% Rv, non condensing
Ingress Protection IP30
Size 96x96x81mm
Weight 114g
Installation Wall Screw Mounting or 3M Tape Mounting
Technology LoRaWAN 1.0.4 / BLE
Device Class Class A or C
Frequency EU 863-870MHz / 2.4GHz ISM on BLE (other regions available upon request)
RF Power 14dBm / 0 dBm (BLE )
Antenna Internal Internal
Supported LoRaWAN Features OTAA, ADR
LoRaWAN Security LoRaWAN End-to-End encryption
Primary Dutch Smart Meter Protocol V3.0 and above
Secondary Signal throughput of Primary Port.
Digital Input Opto-isolated Digital Inputs, 3-24VDC (pulse counter support)
Security IEC 60529-1
CE
Temperature -10°C to 80°C (+/- 0.3°C)
Humidity 0-100% Rv (+/- 2%)
