iQ Display ISD

The iQ Indoor Sensing Device (ISD) sensor is a LoRaWAN® sensor for indoor environmental monitoring.  Enclosed in a nicely designed enclosure that fits the European wall box dimensions.

The YOBIIQ iQ ISD Display sensor measures temperature, humidity, light and motion. It is powered by a replaceable internal battery with a service life of up to 8-12 years.

The iQ ISD Display Lite has a 2.15-inch e-paper display showing the measured temperature and humidity, which boosts the possibility for custom content on the display.

REQUEST A QUOTE

• The sensor measures temperature, humidity, light and motion.
• The product is housed in a UV stable, flush mounted enclosure that is mounted directly onto a flat surface.
• The iQ ISD transmits environmental data periodically and can retransmit the data in case of network outages.

• The sensor is configured locally using a smartphone application over BLE or remotely by sending downlink commands to the product.
• Its battery is capable of working up to 8-12 years. It is possible to place an additional second battery for a longer service life.
• The 2.15-inch paper display allows you to show the temperature, humidity and other data to the users.

Measure the environmental temperature and humidity in rooms in order to regulate the conditions by controlling other equipment like boilers, coolers, etc.

Measure and log the environmental temperature and humidity within buildings and offices.

Measure and log the environmental temperature and humidity within your storage facilities to meet regulatory demands.

Measure and log the environmental temperature and humidity within your datacenters.

The iQ ISD Displays allows you to push other (third-party) data to the display over LoRaWAN.

It comes with a range of default images that can be used to visually provide information to your guests, renters or users.

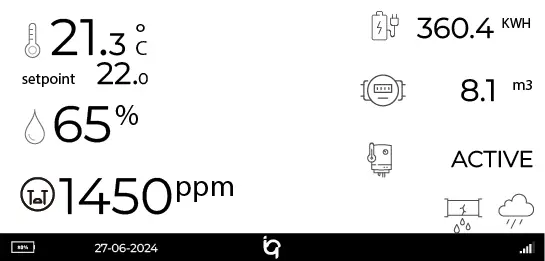

The E-Ink display shows all important measured parameters, including:

• Outside temperature
• Weather conditions
• Energy consumption
• Important information to renters in social housing or recreation

All devices within the iQ ISD Display series can be equipped with a optional button feature.

By using this optional Touchbutton PCB you can extend the already impressive iQ ISD sensor with 3 capacitive touch buttons for any kind of configuration or application you can think of.

A regular use case we see for the button is for Thermostat functionality where an occupant of a room or building can modify the setpoint of the heating or cooling, combined with the third button to actively choose between heating and/or cooling.

You could also use the buttons to refresh data if you are using third-party data, or jump to a second screen with detailed information.

The possibilities are endless!

Connect the sensor through LoRaWAN coverage, a network server and an application with the appropriate payload decoder. Coverage depends on the building, gateway placement and radio environment.

Explore LoRaWAN connectivity

Within environmental variable sensing it’s important that the provided measurements are accurate, requiring sensitive and precise sensors.

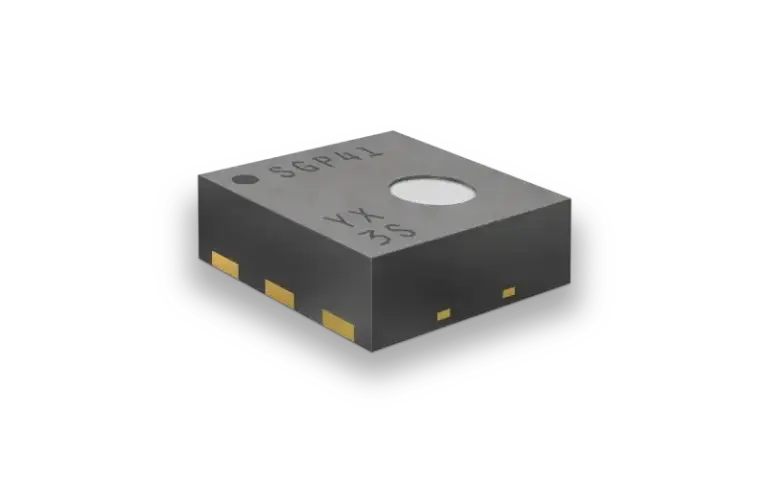

Within YOBIIQ’s ISD series the temperature and humidity sensors are from Sensirion, which has industry-proven sensors for environmental monitoring powered by CMOSens®

The sensor used has a typical relative humidity accuracy of 1.8% RH and a typical temperature accuracy of 0.2°C and comes with a factory calibration.

The sensor for temperature and humidity is compliant with relevant healthy building standards RESET® and WELL Building Standard™

The iQ ISD is powered by YOBIIQ’s iQ Stack firmware, which now boosts extended data storage capabilities alongside of data retransmission.

This feature allows the iQ ISD to store over 1000 sets of historical data records with synchronized timestamps.

If and when the device detects that a transmissions fails, the environmental variables will continue to be collected and stored.

Once the connection to the network is back, all data will be retransmitted to the network, so that that there is no loss of data.

It should be noted that this feature does impact the battery life due to the data storage and retransmission sf factor, get in touch with one of our solution architects for more information!
