EM2101 / Energy Measurement

EM2101 — Single-phase electricity meter

Single-phase metering with an integrated relay.

A direct-connected LoRaWAN electricity meter for single-phase installations up to 80 A, with an integrated relay, digital input and local display.

Discuss your project View specifications
Yobiiq EM2101 electricity meter, isolated product viewYOBIIQ / EM2101
Phase
1
Direct measurement limit
80 A
Integrated switching
Relay
Wireless reporting
LoRaWAN

About this product.

The iQ EM2101 measures a single-phase supply up to 80 A. It records electrical values and energy consumption in both directions. Read values locally on the LCD display, or use LoRaWAN to bring the readings into your application.

An integrated relay supports switching functions. The digital input can monitor the state of an external circuit breaker. Settings are available through the touch buttons, mobile app or LoRaWAN downlinks.

EM2101 is at End of Sale and is being replaced by the DEM series. For a new project or replacement, compare DEM1 and DEM2. Match the required current capacity, connections and switching functions when choosing a successor.

IN YOUR ENVIRONMENTPRACTICAL USE CASES

Find the consumption worth investigating.

The useful question is not just how much energy a building uses, but where, when and what changed.

Shared office with pendant lighting, workstations and meeting areas
EXAMPLE APPLICATIONOffices & shared spaces
Offices & schools

Understand the overnight baseline

An electricity bill shows a total, but it does not tell a facilities team what remains active after everyone leaves.

WHERE YOBIIQ COMES IN

Measure selected circuits and compare operating hours with evenings and weekends in your application. Investigate unexpected demand against the equipment and opening schedule for that area.

  • Consumption
  • Time history
  • Operating hours

A focused list of consumption patterns to investigate before deciding what to change.

Discuss a similar project
EXPLORE THE POSSIBILITIES02 / CONNECT THE DOTS

A closer look. A clearer picture.

Explore how this device fits into a connected environment.

A direct-connected LoRaWAN electricity meter for single-phase installations up to 80 A, with an integrated relay, digital input and local display.

EM2101 / SENSE
EM2101 — Single-phase electricity meter

What the device does

  • Measures a single-phase supply up to 80 A.
  • Records imported and exported energy.
  • Supports switching through its integrated relay.
  • Reports meter readings over LoRaWAN.
01 / 03
UNDERSTAND THE OPERATIONDEVICE + APPLICATION

See what happens.
Step by step.

Local measurement and wireless reporting, with a separate integrated switching function.

METERING Information / action
  1. EM21011 phase / 80 A
  2. LoRaWANUplink
  3. ApplicationReadings
Follow energy consumption at an individual single-phase supply.
01 / IN PRACTICE

Measure and record

The direct-connected meter records voltage, current, power, power factor, frequency and energy. Set the logging interval from 5 to 60 minutes.

Follow energy consumption at an individual single-phase supply.

FITS INTO YOUR WORLDNETWORKS & PLATFORMS

Your network.
Your way of working.

Connect the device to a LoRaWAN network, then bring its data into the application your team uses. Each layer has a different job.

01

Network servers

Connect devices and route their LoRaWAN messages.

LoRaWAN
Public or private networks
EM2101 datasheet
02

Application platforms

Turn decoded data into dashboards, history and actions.

YOBI Cloud
Energy monitoring
Product documentation

LoRaWAN reporting requires a network server and a payload decoder matched to the EM2101 and its firmware.

Plan your integration
THE APPLICATION LAYER

From meter readings to a working overview.

Compare consumption, review trends and investigate reported events. This published YOBI Cloud example shows how energy data can be organised; the available fields depend on the meter and integration.

Explore the platform example
YOBIIQ / PLATFORM EXAMPLE View full size

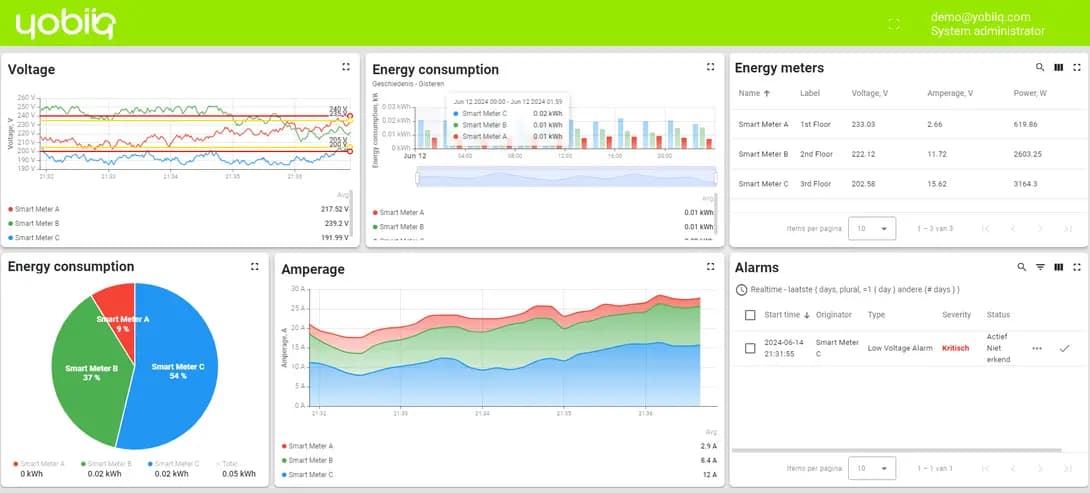

YOBI Cloud example dashboard showing voltage, electricity consumption, energy meters and alarms
Published platform example. Devices, readings and layout shown are illustrative.
DESIGNED WITH PURPOSE03 / THE DETAILS THAT MATTER

Small details. Real capability.

Single-phase direct connection up to 80 A
Integrated relay
Digital input for status monitoring
Bidirectional energy recording
LCD display and touch buttons
DIN-rail mounting
Wireless LoRaWAN reporting
THE TECHNICAL VIEWFUNCTIONS & INTEGRATION

The details behind the decision.

A practical overview to help you specify the right device and the system around it.

Product documentation
Electrical connection
Phases1P2W
Measurement methodDirect
Current range0.005–80 A
Nominal voltage230 VAC
Voltage range85–270 VAC
Frequency45–65 Hz
Functions and installation
RelayIntegrated
Digital inputExternal circuit-breaker status
CommunicationLoRaWAN
MountingTS35 DIN-rail
Logging interval5–60 min
Operating temperature−25 to +55 °C
SPECIFY IT FOR YOUR PROJECT

Choose a DEM-series replacement according to single-phase measurement, current capacity and the relay and input functions your installation requires.

Check your configuration
FROM SELECTION TO SITEPLAN YOUR INSTALLATION

A good deployment starts here.

Four things to settle before the first device goes into service.

  1. 01

    Choose measurement points

    Decide whether you need a building total, a circuit view or separate readings for individual spaces.

  2. 02

    Match the electrical installation

    Confirm the single-phase connection, current capacity and DIN-rail space with the installer.

  3. 03

    Bring readings into the platform

    Commission the LoRaWAN connection and verify units, timestamps and the selected reporting interval.

  4. 04

    Record the baseline

    Collect a representative period and label the measurement points before using the data to assess changes.

QUESTIONS, ANSWERED

Before you choose.

Practical answers about EM2101 — Single-phase electricity meter.

Ask us something else
Can I still order an EM2101?

EM2101 is at End of Sale and is being replaced by the DEM series. Explore DEM1 and DEM2 or ask us to help select a replacement.

Is this a single-phase or three-phase meter?

EM2101 is a single-phase, direct-connected meter up to 80 A. The DEM range includes DEM4 for three-phase measurement.

Does EM2101 include a relay?

Yes. The meter has an integrated relay and a digital input for monitoring an external circuit breaker.

Can the meter measure without LoRaWAN?

Yes. Local measurement and display work independently. Wireless reporting requires an operational LoRaWAN network.
